Introduction
VG Bitumen 40, also known as viscosity grade 40 bitumen, is a type of bitumen that falls under the viscosity grading system used to classify bitumen based on its viscosity at a specific temperature. VG Bitumen 40 has specific properties that make it suitable for certain applications, particularly in road construction and asphalt paving.
Applications:
-

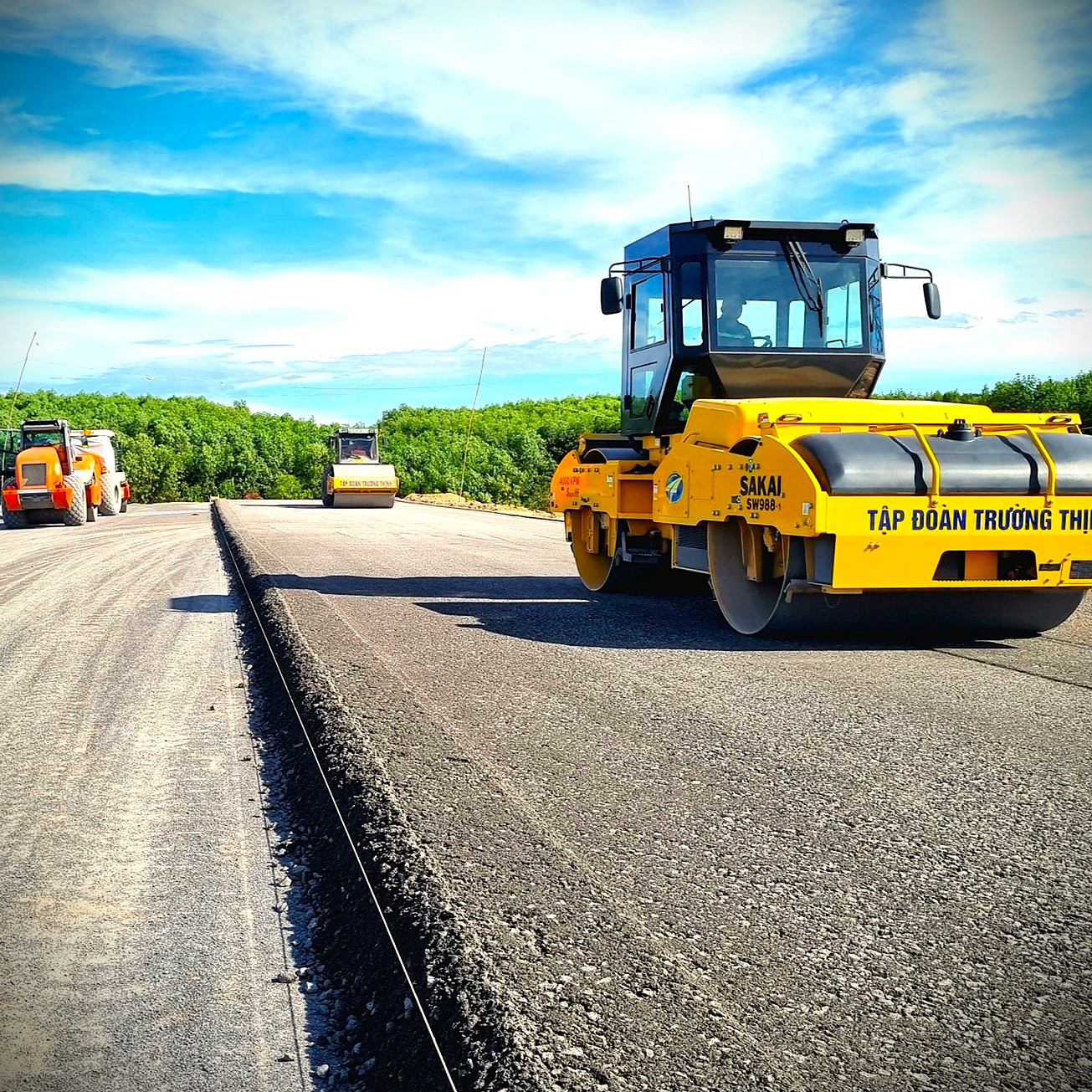

Road Construction
It is extensively used in road construction due to its high durability and resistance to heavy traffic loads. It is used in the base, binder, and wearing courses of flexible pavements.
- Airport Runways
The high load-bearing capacity and thermal stability of VG40 make it ideal for use in airport runways, which are subject to heavy aircraft landings and takeoffs.
- Waterproofing
It is also used in waterproofing applications to protect structures from water ingress. Its water-resistant properties make it an effective barrier against moisture.
- Industrial Uses
In addition to construction, VG 40 finds applications in various industrial processes, including the production of roofing materials, sealants, and adhesives.
Shipping and Logistic
Viscosity Grade 40 is a hazardous material and should be handled with care. SOME SAFETY TIPS WHEN USING VG-40 ARE: Protective Equipment:Â Always wear appropriate PPE when handling VG 40, including gloves, safety goggles, and protective clothing. Ventilation:Â Ensure that there is adequate ventilation when using VG 40, as the fumes can be hazardous. Handling and Transfer:Â Transport VG 40 in approved containers and vehicles, following all safety regulations.
Packing BITUMEN VG40 IN:
- 180kg New Steel Drum: Loading 110 Drum in 20 ft
- 375Kg Bitubag: Loading 24 MT in 20 ft Container
- Bulk in vessel: Loading 2000 to 20,000 MT in Bitumen Carrier
- Bulk in Flexi Bag: Loading 20 MT in Bitumen Flexi Bag
- Bulk in Tanker: Loading 25 MT in Truck Tanker
Specification
| Specification | Unit | Value | Test Method |
|---|---|---|---|
| Absolute Viscosity, at 60 â—¦C | Poise | Min 3200 | ASTM D4402 |
| Kinematic Viscosity, at 135 â—¦C | CST | Min 400 | ASTM D2170 |
| Flash Point | â—¦C | Min 220 | ASTM D93 |
| Solubility in Trichloroethylene | %WT | Min 99 | ASTM D2042 |
| Penetration Value, at 25 â—¦C | 0.1mm | 40-60 | ASTM D5 |
| Softening Point | â—¦C | Min 25 | ASTM D36 |
| Viscosity Ratio, at 60 â—¦C | â—¦C | Max 4 | ASTM D4402 |
| Ductility at 25 â—¦C, after thin film oven test | Cm | Min 25 | ASTM D113 |
